Cold chain Disposable Temperature Recorder

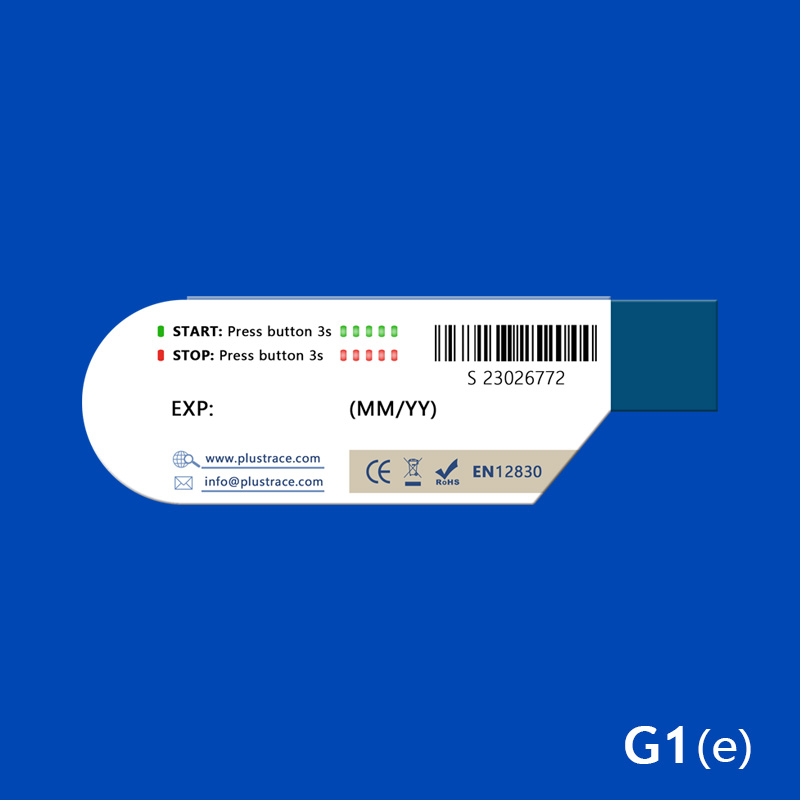

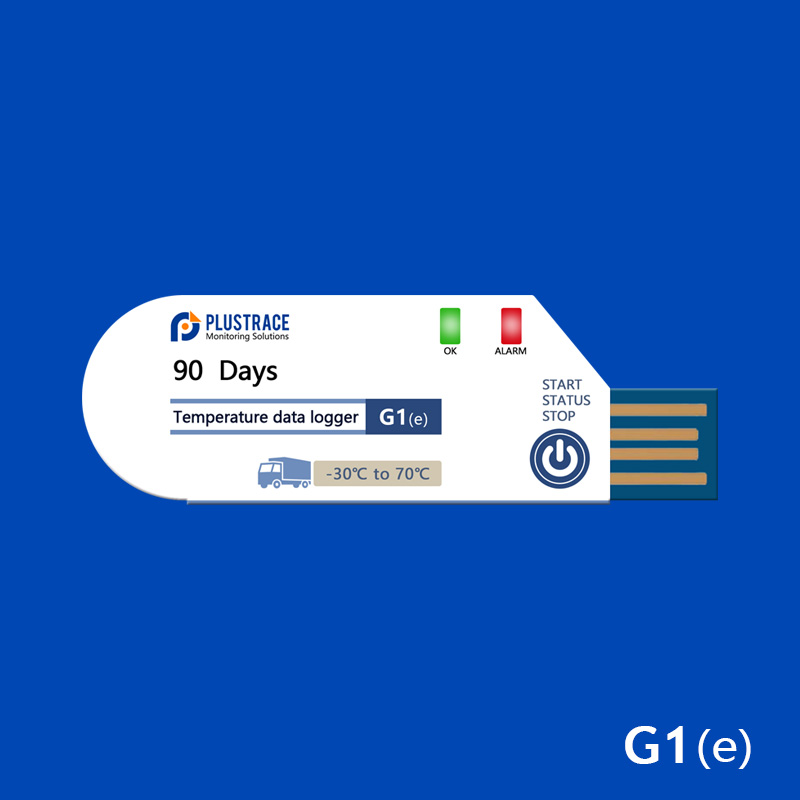

Model:G1(e)
This compact G1(e) cold chain disposable temperature recorder is specifically designed for one-way cold chain transportation. Suitable for fresh, pharmaceutical, chemical and other fields of temperature monitoring, factory preset sampling interval and alarm threshold, no software, ready to use. After transportation, it is connected to a PC to automatically generate a tamper-free PDF report for one-time use, eliminating the cost of recovery and calibration.

    G1(e) is a cold chain disposable temperature recorder newly launched by PLUSTRACE for cold chain transportation. This product is suitable for tracking the entire temperature of various temperature-sensitive products in the cold chain, including fruits and vegetables, food, dairy products, medicine, etc. Compared with the previous single-use temperature recorders, this cold chain disposable temperature recorder is smaller in appearance and has a relatively more favorable price.

    The cold chain disposable temperature recorder does not require any software installation. It features a one-click operation and has pre-set sampling intervals and alarm thresholds at the factory. It is a temperature monitoring device specifically designed for single-trip transportation and does not require any configuration.

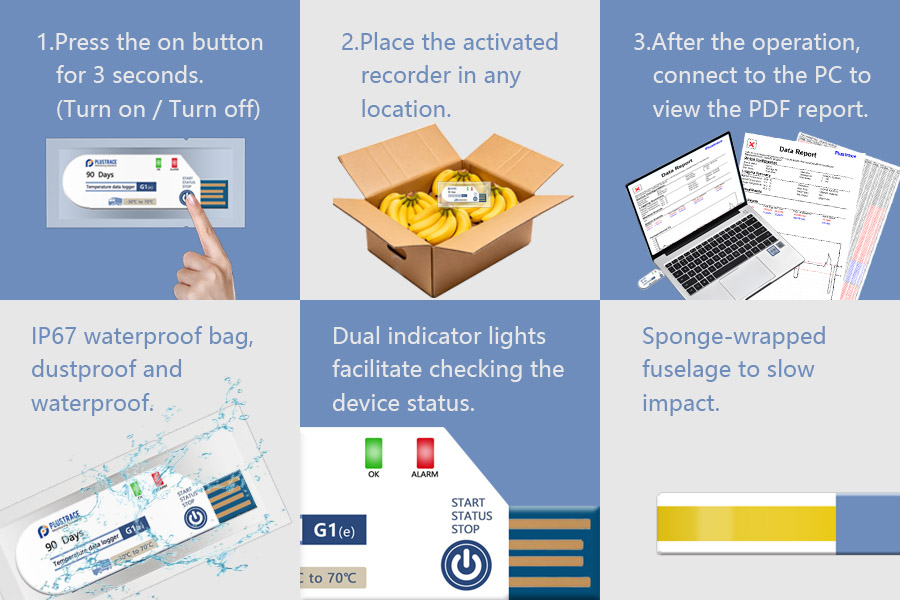

    After the equipment is activated, if the recorded temperature during transportation exceeds the safety threshold, an alarm will be triggered, allowing the staff to promptly adjust the cargo status and avoid unnecessary losses. After the operation is completed, remove the cold chain disposable temperature recorder and connect the USB to the PC to view and download the report. The report cannot be altered and can be used as an effective evidence to avoid disputes.

    G1(e) Cold chain disposable temperature recorder parameters:

    Temperature range
    -30°C to +70°C(-22°F to 158°F)
    Accuracy
    ±0.5°C

    Resolution

    0.1°C
    Storage capacity
    32000 Readings
    Life/Battery
    18 months/3V CR2032
    Measurement interval
    10 minutes (Customizable)
    Recording time
    90 Days (Customizable)
    Protection class
    IPE67 / NEMA 6
    Dimensions
    82 x 36 x 6 mm
    Weight
    Approx 10g
    Calibration certificate
    Nvlap NIST traceable (United States)
    PC connection
    USB 2.0
    Report
    Adobe PDF graphics
    Delivery contents
    Dispatch documents, certificate

    PLUSTRACE G1(e) Cold chain disposable temperature recorder features:

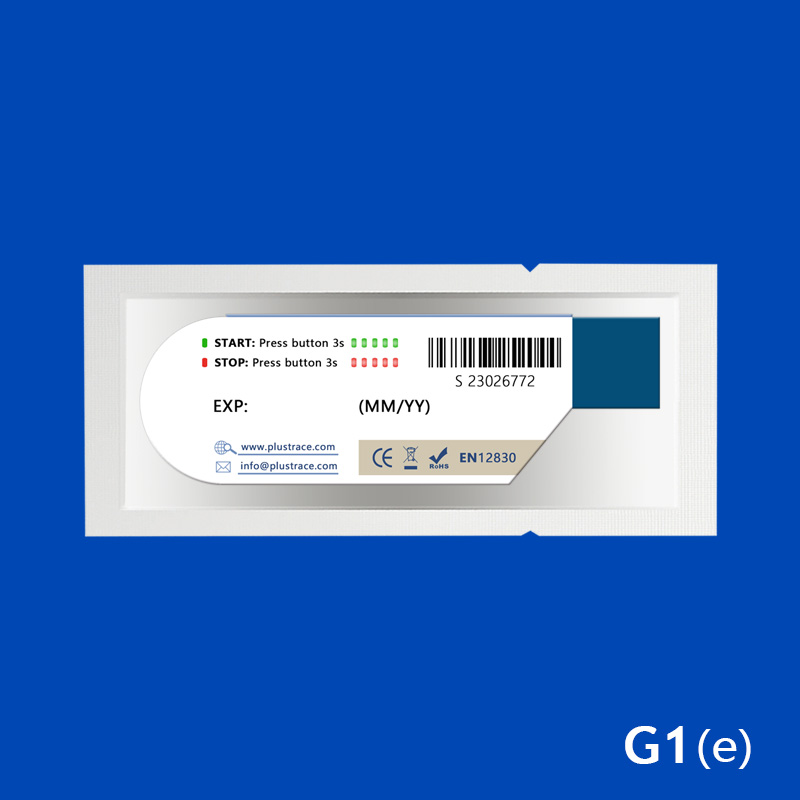

    1. The outer layer is made of IP67 food-grade waterproof bags, which effectively prevent dust and water, ensuring the stable operation of the recorder;
    2. The shelf life is up to 18 months, guaranteeing the working performance of the recorder;
    3. The device can be modified to set the running days (7/30/60/90 days) as needed;
    4. The accuracy can reach ±0.5℃, suitable for monitoring various temperature-sensitive products;
    5. The USB interface of the device can be connected to the PC end to view and download the report, without the need for a reader;
    6. Before delivery, it can be pre-configured and calibrated according to the customer's requirements, and is convenient for the customer to use after delivery.
